500mm*500mm DM-R PH2.6 Outdoor Indoor Interactive Dance Floor Tile
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf
Applicable scenarios:
1. stage performance
2. welcome display and restaurant
3. shopping mall and wedding scene
4. Bars/Night Clubs/KTV
5. Floor Display and Media Advertising
6. shopping mall flagship store
Features:
1. high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. good heat dissipation
4. creates a vibrant and dynamic dance floor
5. we provide complete set for led dance floor, improving your procurement efficiency and experience
6. The best price. You are welcome to contact us for a free project evaluation.
7. stunning visual display and immersive experience
Product Details
Models: DM-R PH2.6
| Pixel Pitch (mm) | 2.604 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 96x96 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 147456 | Gray Scale | 14bit |
| Lamp Type | SMD1415 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/24Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x500 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 192x192 | Cabinet Weight | 12kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |

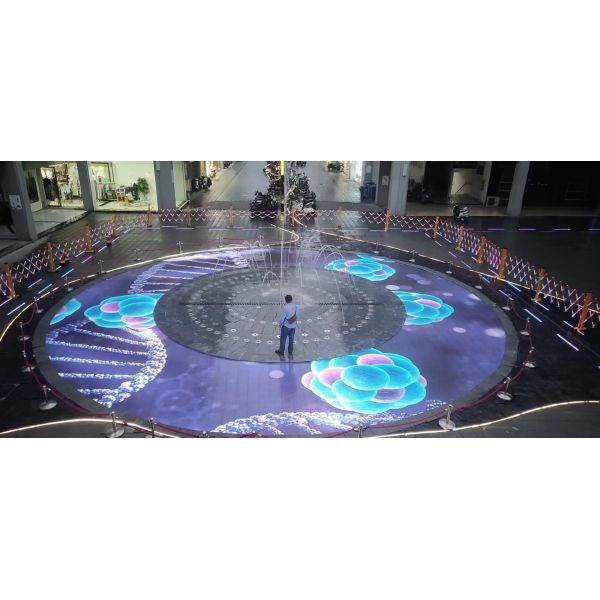

Application:
FQA:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: What LED screen size you can do?
A: One LED panel size is 500mmx500mm, also have 500x1000mm for option, the whole screen size can be customized based on client's demand.
